Atari 2600 2K/4K PC Board
$3.99 – $4.99
Are you creating new Homebrew games or hacks? Want to make a cartridge of a game that was never released? We have created a 2K / 4K board that allows you to create your Atari cartridges easily. These boards use standard 2716 (2K) and 2732 (4K) EPROMs.

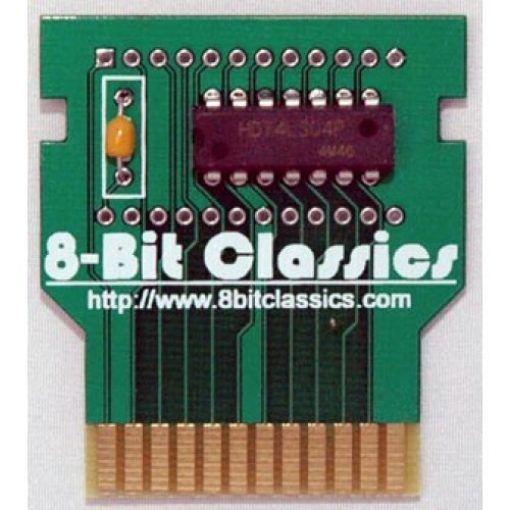

Now includes the option for our New Design boards (pictured) with larger holes for easier insertion of EPROMs into the boards.
Boards are pre-assembled for your convenience. You just need an EPROM (and an EPROM programmer) and some soldering skills. As a convenience, if you do not have an EPROM programmer, we added an option for us to program the EPROMs and solder them. Please see below.
For quantities over 100, please email us for a quote!
EPROM Programming: We will not burn EPROM's of copyright games. This service is meant for people who would like to make a physical cartridge of a freely released game or for homebrew developers wanting to make physical cartridges for their games. If you want to create a reproduction, please order a bare board, or we will cancel your order. Use the contact us to learn how to send us the file(s).
Returns/Exchanges: Returns and exchanges will only be given on unused boards. If the board has been soldered on or altered in any way, there will be no refund or return. Please evaluate boards upon receipt, and if there is an issue with them, please contact us.
Additional information
| Weight | .25 oz |
|---|
Peter Steriotis (verified owner) –
These are the BEST Atari 2600 2K/4K PC Boards available.I have purchased and used hundreds of Atari 2600 PC boards from 8-Bit Classics and they have always worked perfectly and with no problems. Made from only the finest materials.Look no further these are the BEST !!! HIGHLY RECOMMENDED…
Upvote if this was helpful (1) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
B.J. (verified owner) –

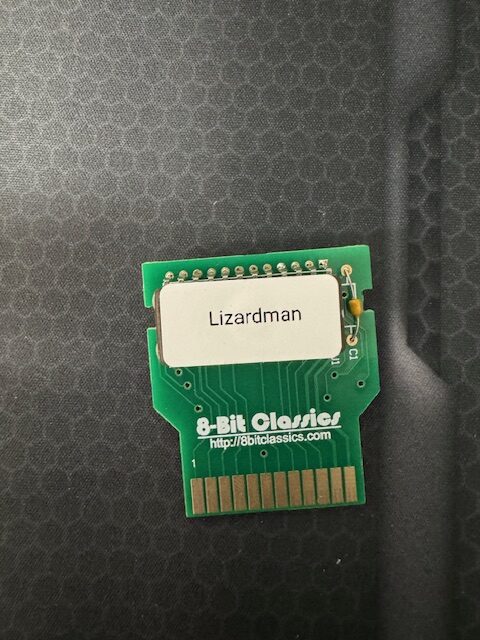

I asked 8-Bit Classics to burn some EPROM’s and solder them to boards for a small 4k game I made. Everything works great, and it’s cool to assemble the boards into my own carts. Thanks!
Upvote if this was helpful (1) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Mike (verified owner) –
Couldn’t be happier with the quality of these boards. They were perfect for my homebrew game. Can’t recommend them enough. Thanks to everyone at 8BitClassics
Upvote if this was helpful (1) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Question
David Philipe Gil –
Hello. I am interested in burning my own Atari ROMs onto a cartridge. How do you get a rom onto this cartridge? I have seen that one needs an EEPROM burner to get ROMs onto the chip. Is the chip removable in this case? If so, which burner do I need?
Upvote if this was helpful (1) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Admin 8-Bit Classics –
Yes, if you are burning your own EPROMS, you will need to purchase the appropriate EPROM from a vendor. I would recommend eBay and search “EPROM 2732” for 4K EPROMs. You would also need an EPROM programmer. The GQ PRG-055 GQ-4X V4 is a good model and not expensive. It is also available on eBay.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
SmakyTaky –
Can I use an Mini Pro TL866II Plus to program the EPROMS?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Admin 8-Bit Classics –
You would have to check the compatibility list of the programmer to see if it would burn the EPROMs that you have. Most EPROMs now are the M2732A variant which can be purchased still if you wanted to check the list of compatiblity.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
A P (verified owner) –
In future revision it would be nice for the holes for the eprom leads to be a bit bigger. Also, marking for the pin 1 position. My experience worked out great!
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Alexander Simakov (verified owner) –
Excellent, high quality PCB. Perfect for a homebrew project! Used as part of a 4K Atari 2600 ROM cartridge tutorial. Very cool stuff! Will be buying more in the future.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Charlie (verified owner) –
Great product, great service, great price – can’t beat the board and EPROM service! I used this product and service for a small homebrew game and couldnt be happier with the results. Communication has also been wonderful through the process. Will be back for more!
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
