GET THE NEW PSU AS YOUR AMIGA IS WORTH IT.
The Commodore Amiga computers were originally equipped with various PSU models. Heavyweight, lightweight, in range of 24W-35W output power. Some of them were trafo based when the other where switching mode (actually quite good) but now, all of these PSUs have same problem: are over 30 years old and not longer reliable.
Worldwide Amiga Users community is active & creative ๐ using of some additional gear is now a standard (HDDs, SD cards, WiFi PCMCIA, RAM&CPU extensions & accelerators). It's all making the power consumption higher than ever expected for stock PSU, causing the overload and high ripple.

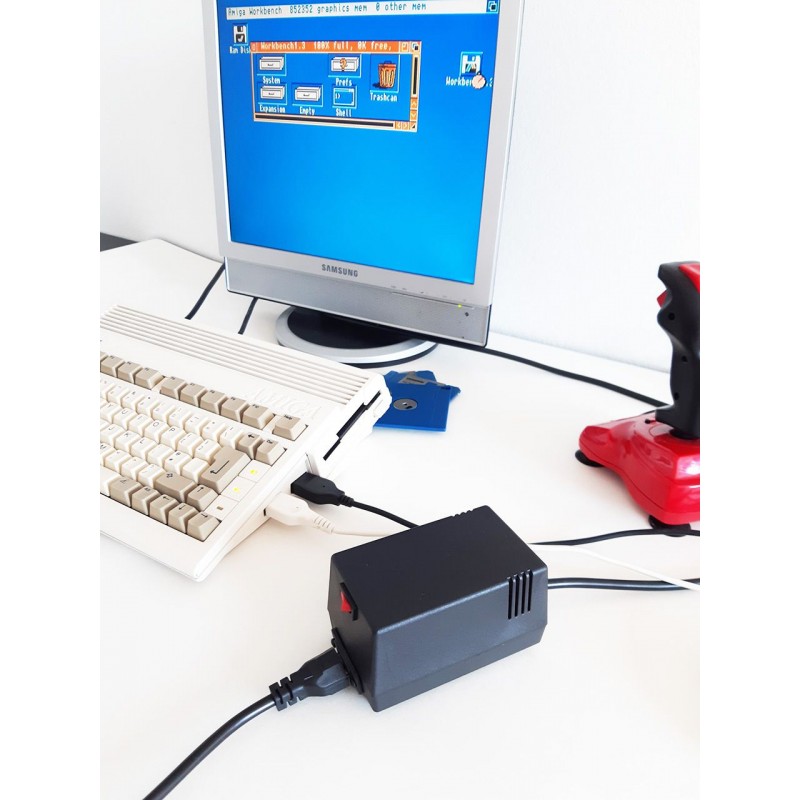

If your PSU is not enough or is not longer working - it's time to get a solid replacement made of superior quality, reliable components complying the modern medical grade standards. It's 50W (55W peak) of total combined output power making it nearly 2x times stronger than original Commodore Amiga PSU and 2x smaller in dimensions & weight to save your desk's space.
THE ABSOLUTE BASICS OF MODERN AMIGA PSU
Standard Amiga PSU features:
- Commodore Amiga 500, 500+, 600, 1200 compatible
- Stabilized & filtered 5VDC up to 4A output (4.4A peak)
- Stabilized & filtered 12VDC up to 2A output (2.2A peak)
- Stabilized & filtered -12VDC up to 0.5A output (0.55A peak)
- Carefully calibrated for Amiga 500 reference load
- Active & passive over voltage protection for main +5VDC line
- Over current protection for all output lines
- Fully isolated & fused on AC side
- Power On/Off switch
- Long output cable (1.8m) with rectangular DIN 5-pin plug.
- Detachable input AC cable for all versions (cable included)
- Weight only 0.4 KG (2x less than original PSU)
- Runs COLD!
GO BEYOND THE BASIC: BUY THE AMIGA PSU EXTENSION MODULE
NEW Protection & Adjustment LED Module add-on to enable an advanced features:
- Trimmer for 5VDC voltage fine tuning in range: 4.9-5.3V (values read with A500 reference load)
- Power good status LED (green)
- Redundant, fast over voltage protection for 5VDC line
- Voltage spikes suppression with ultra-fast TVS diode
- Redundant, resettable over current protection for 5VDC line
- Additional output ripple reduction by low-ESR capacitor filtering
Additional information
Weight | 30 oz |
---|
